Single Roll Crushers (SRC)

PNC Logo

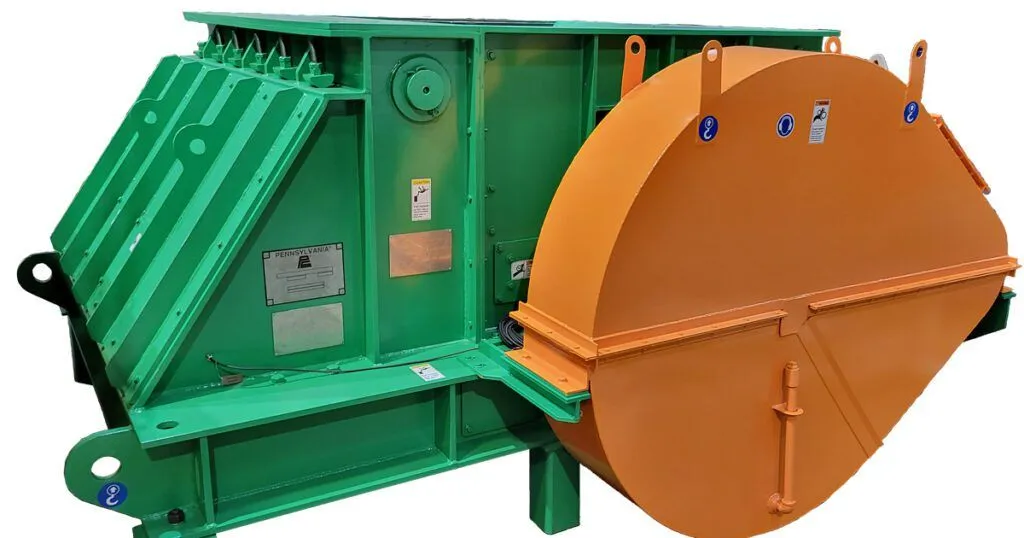

PNC single roll crusher
single roll crusher

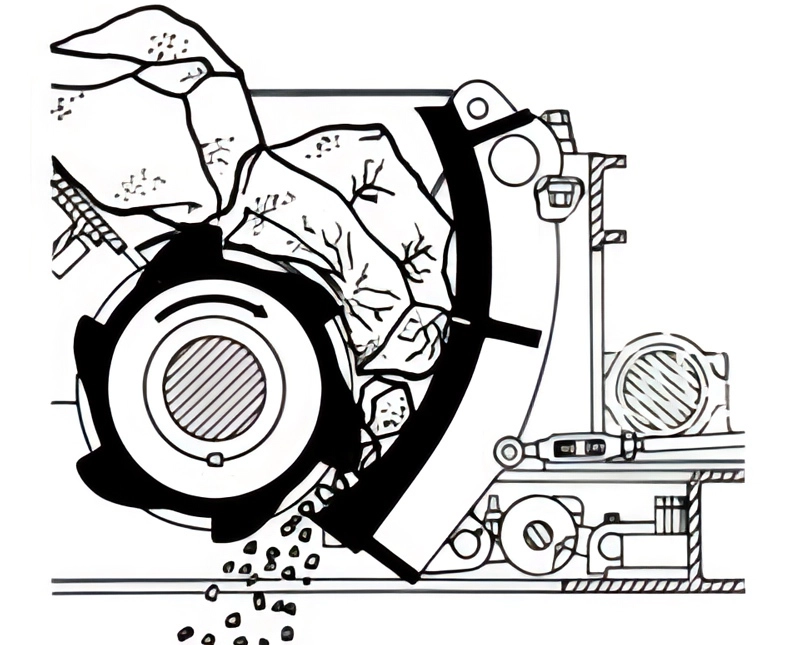

Operational Illustration

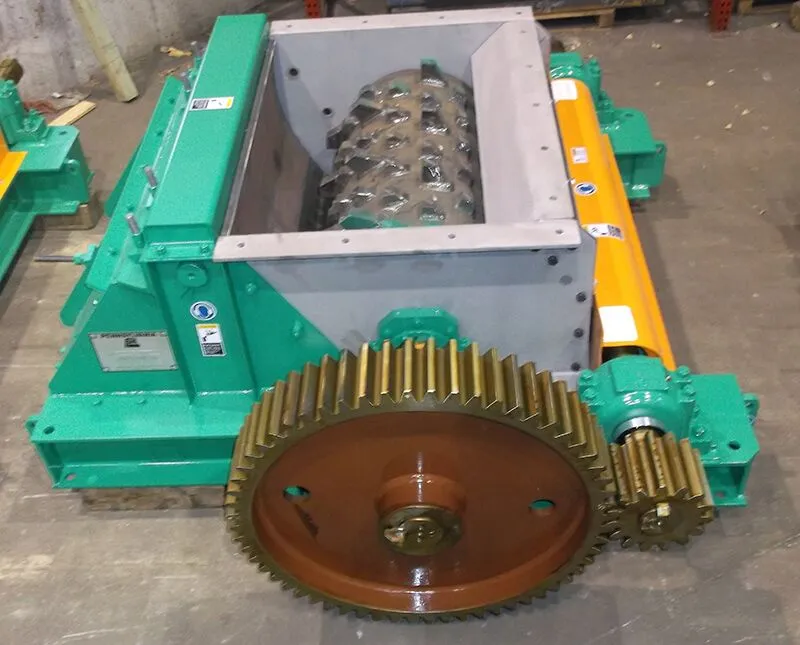

roll crusher
Ready for Shipment
PNC single roll crusher 3D

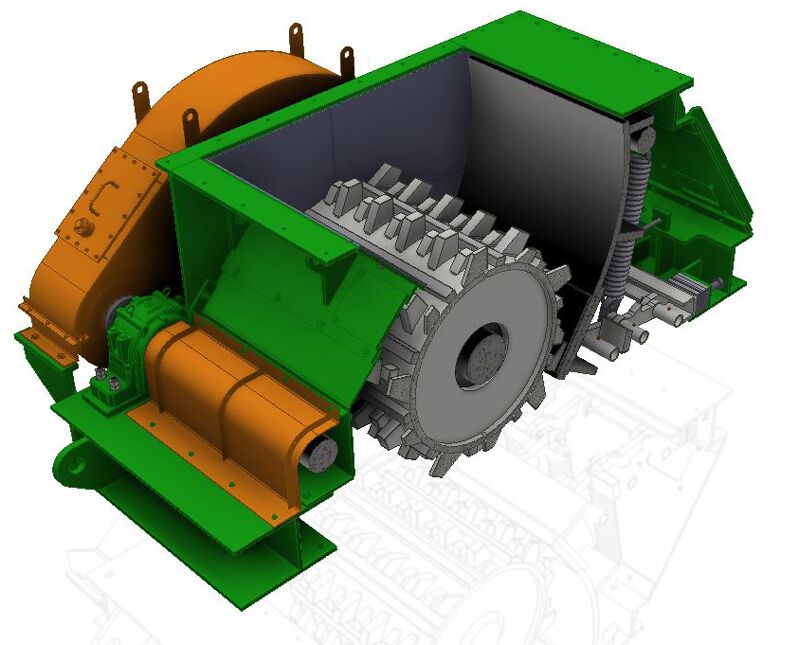

Type-K ATEX Rated Sectional Drawing

Features and Benefits

  • Three Methods of Reduction: Impact, shear, and compression methods for efficient material reduction.
  • Compact Design: Large mouth for accepting large slabs in a compact structure.
  • Curved Breaker Plates: Ensures proper crushing without allowing large slabs to pass through.
  • Low Profile: Fits easily in limited spaces and under dump hoppers.
  • Superior Roll Assembly: Teeth securely fixed, minimizing loosening.
  • Minimal Fines Production: Fractures material along natural lines, reducing fines.
  • No Screen Bars: Prevents re-crushing, further reducing fines.
  • Low Power Requirement: Operates at low speeds, minimizing power demand.
  • Multiple Models: Cater to varying material strengths and applications.
  • Accurate Size Reduction: Effective for materials with moderate to high compression strength.
  • Open Bottom Discharge: Allows sized material to fall through without re-crushing.



  • Product Size Control: Gap adjustment for precise output size control.
  • Easy Adjustment: Shim arrangement for quick output size adjustments.
  • Flexible Feeding Options: Choke-fed or continuous from various equipment.
  • Efficient Material Reduction: Impact, shear, and compression ensure effective reduction.
  • Space-saving Design: Fits well in limited spaces.
  • Reduced Fines Production: Minimizes fines for better material quality.
  • Energy Efficiency: Low-speed operation leads to cost savings.
  • Versatile Application: Suitable for a range of materials.
  • Controlled Output Size: Easy adjustment for precise output control.
  • No Material Recirculation: Maintains product integrity with open bottom discharge.
  • Reliable Performance: Secure assembly for consistent operation.
  • Ease of Maintenance: Simple adjustments and robust design for easy maintenance.
  • Flexibility in Feeding: Integrates seamlessly with various feeding systems.

Industries

Cement Production  •  Chemical Processing  •  Mining Operations (Aggregate, Sand & Gravel, Coal, Gypsum, and Other Minerals)
Petroleum Coke Processing  •  Power Generation  •  Steel Production

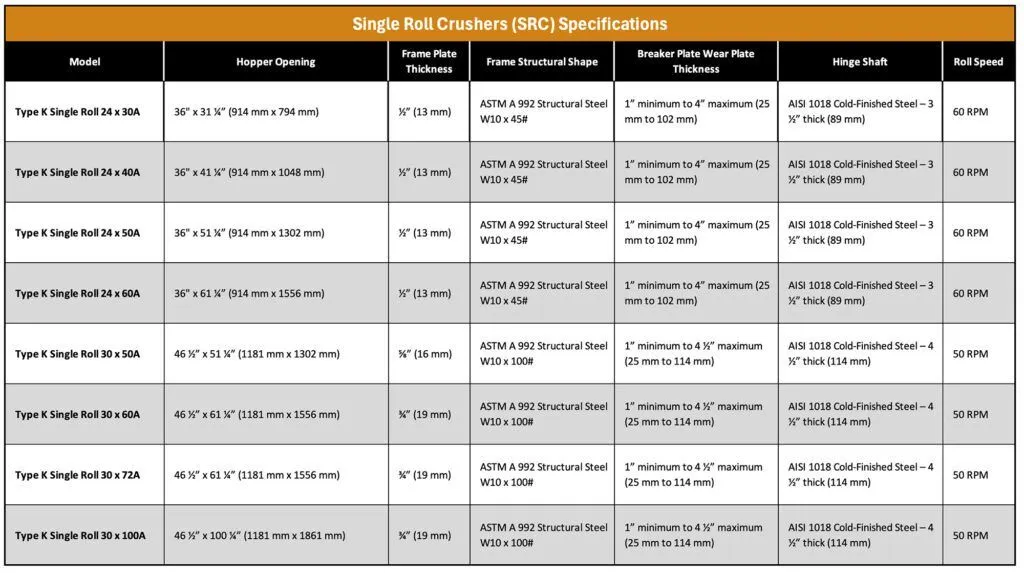

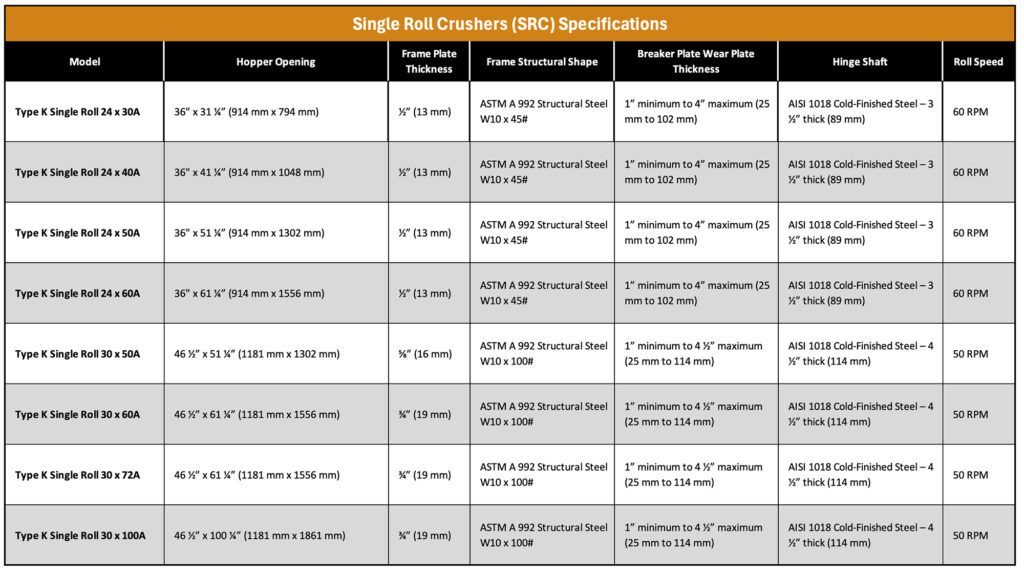

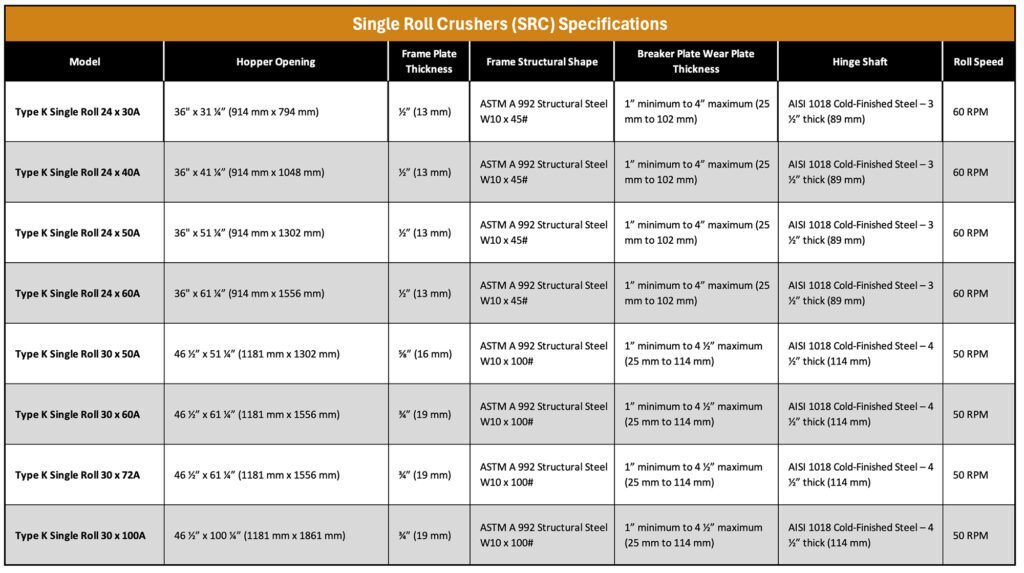

type k specifications

Technical Details

  • Frame: ASTM A36 Fabricated Steel Plate
  • Breaker Plates & Wear Plates: AISI 1040/1045 Hot rolled Carbon-Manganese Steel
  • Breaker Plates Thickness: 1” (25 mm) thick front plate with 1” (25 mm) ribs. Screw adjustment with shims for breaker plate adjustment
  • Roll Shell: AISI 1040/1045 Hot rolled Carbon-Manganese Steel – 1¼” thick (32 mm)
  • Roll Shaft: Hot Rolled Steel AISI 1141
  • Roll Shaft Bearings: Self-Aligning Spherical Roller
  • Drive Shaft: Hot Rolled Steel AISI 1141
  • Drive Shaft Bearings: Self Aligning Spherical Roller, Tapered Bore Bearings
    Shaft Standard Lubrication is grease
  • Bearing Housings: Cast Iron, Split with Labyrinth Seals
  • Gear Rim Material: AISI 1045 Hot rolled Carbon-Manganese Steel
  • Gear Web & Hub Material: ASTM A36 Fabricated Steel
  • Pinion Material: ASTM A668 Class E Forged Heat Treated Steel
  • B10 Bearing Life: >100,000 hours
